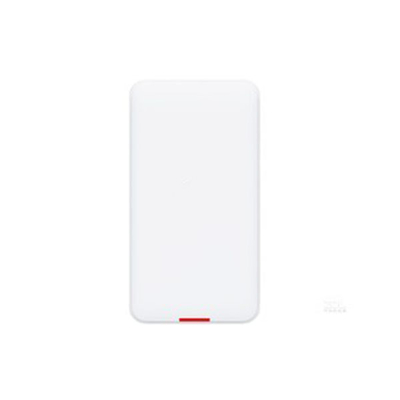

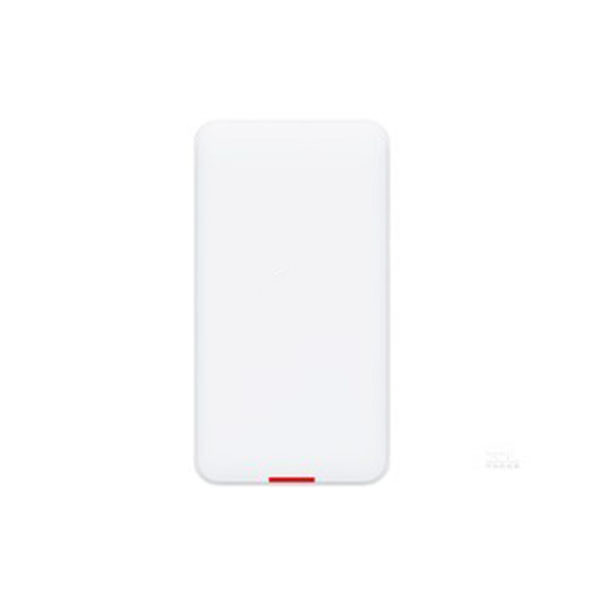

Hua wei 11ax indoor type Wi-Fi 6 wall plate access point AirEngine5761S-11W
Description
AirEngine 5761S-11W is Wi-Fi 6 wall plate access point (AP). It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users' wireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, dormitory rooms, and hospital wards.
Features
-Uplink: 1 x GE electrical port; downlink: 4 x GE electrical port + 2 x RJ45 passthrough port
-Mounting on a junction box or wall, facilitating deployment
-Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
-USB port for IoT application extension (such as ZigBee and RFID)
-Bluetooth serial interface–based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
-Working modes: Fit, Fat, and cloud management
Product Spectification
| Specifications | AirEngine5761S-11W |
| System memory | DDR4 1 GB |
| Flash |
NAND FLASH 512 MB |
| Power input |
DC: 12 V ± 10%
|
| Maximum power consumption | 12.7 W (without USB) |
| Antenna gain |
WLAN 2.4 GHz radio: 2.5 dBi |
| Maximum number of users |
≤ 512 for each radio When functioning as a leader AP, the AirEngine 5761S-11W can manage a maximum of 1152 users. |
