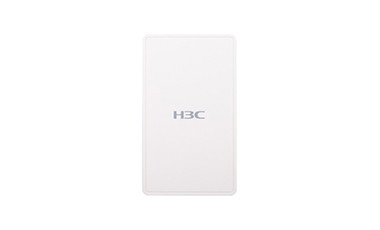

Wall Plate AP Enterprise Wireless Access Points H3C WA6320H

Wall Plate AP Enterprise Wireless Access Points H3C WA6320H

Products - Enterprise Wireless Access Points
  • High Light

    Wall Plate AP H3C WA6320H

    ,

    Enterprise Wireless Access Points H3C WA6320H

    ,

    Wall Plate Enterprise Wireless Access Points

  • Product Model
    H3C WA6320H - HI New Generation Wall-Plate Access Point
  • Keywors
    Enterprise Wireless Access Points
  • Weight (excluding Mounting Accessories)
    0.3kg
  • Dimensions (excluding Mounting And Accessories)
    160mm×86mm×39mm
  • PoE
    802.3at
  • Local Power Supply
    54V DC
  • Place of Origin
    China
  • Model Number
    WA6320H
  • Minimum Order Quantity
    1
  • Packaging Details
    Carton box
  • Delivery Time
    3-5
  • Payment Terms
    L/C, T/T, D/P, D/A, Western Union,
  • Supply Ability
    10000 set per month

Wall Plate AP Enterprise Wireless Access Points H3C WA6320H

  • Wall Plate AP Enterprise Wireless Access Points H3C WA6320H
  • Wall Plate AP Enterprise Wireless Access Points H3C WA6320H
Get Price Contact Now

H3C WA6320H - HI New Generation Wall-Plate Access Point



Description



H3C WA6320H-HI series access point is the latest generation Wall-Mount wireless access point developed based on 802.11ax standard. They are designed with creative dual-radio 802.11ax technology standard respectively, and provide a transmission speed at least 2 times faster than 802.11ac products. High performance and cost-effective Wi-Fi 6 (802.11ax) for hospitality, branch, andteleworker deployments

Features

  • Wall-Mount series AP uses the international standard wall plate design. Installing an AP is just as simple as installing other switching panels. All it takes is 5 steps in less than 5 minutes which effectively accelerates the wireless network deployment process.



Product Spectification



Specifications H3C WA6320H
Ethernet ports

Front panel:
1x Ethernet ports(100/1000Mbps), support Power out
3x Ethernet ports(100/1000Mbps)
Back panel:
1x uplink GE port (100/1000Mbps)
1x uplink SFP port (100/1000Mbps)


Modulation mode

11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n:MIMO-OFDM: BPSK, QPSK,16QAM, 64QAM
11ac:MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM
11ax: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM,1024QAM


Overall power consumption

≤14W(excluding PoE_OUT and USB)

≤31.5W(including PoE_OUT and USB)
Safety compliance GB4943, EN60601-1-2(medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22
State LED

Alternating flashing mode, orange/green/blue for different working states, breathing mode


Health

FCC Bulletin OET-65C, EN 50385, IC Safety Code 6







Wall Plate AP Enterprise Wireless Access Points H3C WA6320H 0





Q: How could I get samples?
A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight. We send the
samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from
our company or send us the samples charge together with the courier cost.
Q: How much the Courier freight will be for the samples?
A: Courier freight depends on weight and carton size, destinations and other relating factors.
Q: How can I get your price list?
A: Please leave your contact way such as Email/Whatsapp/Skype/Trademanager to us. We will contact you and pass our quotation
sheet to you as soon as possible.
Q:When can I get the price?
A: We usually quote within 8 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we will regard your inquiry priority.
