Hua wei AirEngine 6761 - 21T Triple-band Radios Enterprise Wireless Access Point
Description

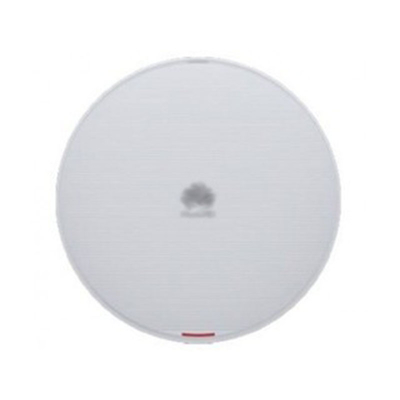

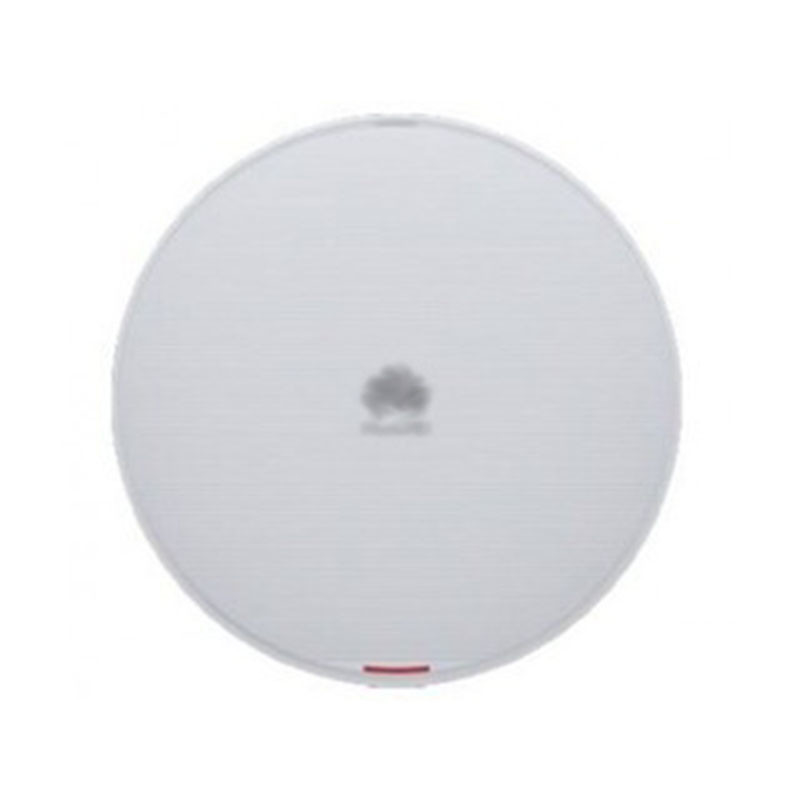

A next generation indoor Wi-Fi 6 (802.11ax) Access Point (AP), AirEngine 6761-21T features triple-band radios 1 x 2.4 GHz and 2 x 5 GHz plus built-in Smart Antennas that enhance coverage and signal quality, offering a rate of up to 6.575 Gbit/s.
This AP excels in scenarios requiring high bandwidth and a high-quality network experience, from enterprise offices and educational institutions to stadiums.
Features
Dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% wider coverage, realizing high-quality wireless coverage with zero blind spots.
A triple-band radio design — 1 x 2.4 GHz and 2 x 5 GHz — supports 50% more concurrent users compared to dual-band APs.
cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
Product Spectification
| Specifications | AirEngine 6761 - 21T |
| Dimensions (Diameter x Height) | Φ220 x 50 mm |
| Power Input |
DC: 12 V ±10%
|
| Maximum Power Consumption |
21.20 W (excluding USB) |
| Maximum Number of Users | ≤ 1536 Note: The actual number of users varies according to the environment. |
| Operating Temperature |
–10°C to +50°C
|
| Maximum Rate | 6.575 Gbit/s |
| Radio Protocols |
802.11a/b/g/n/ac/ac wave2/ax |
