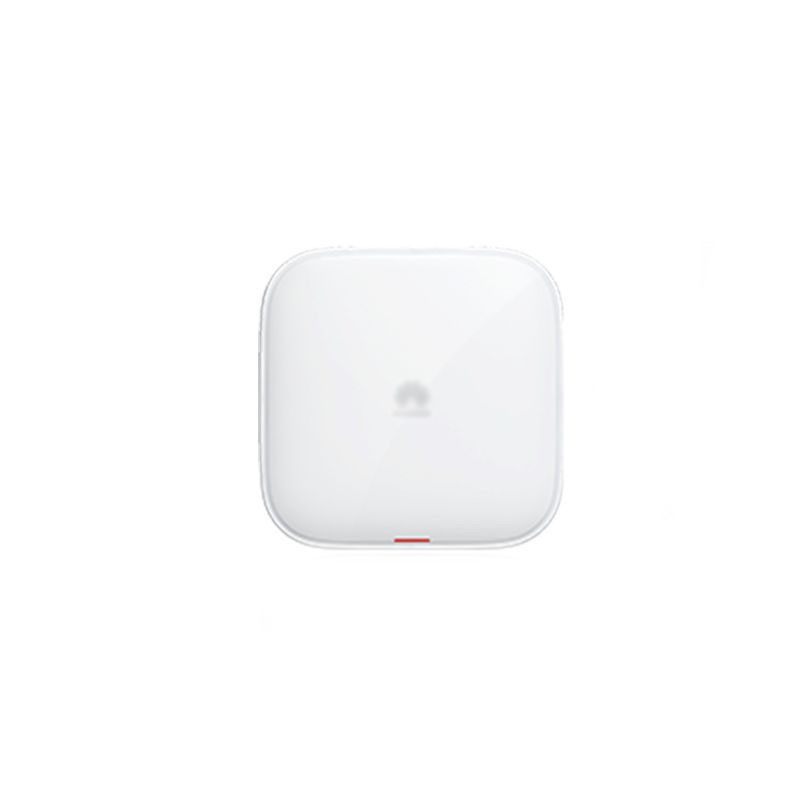

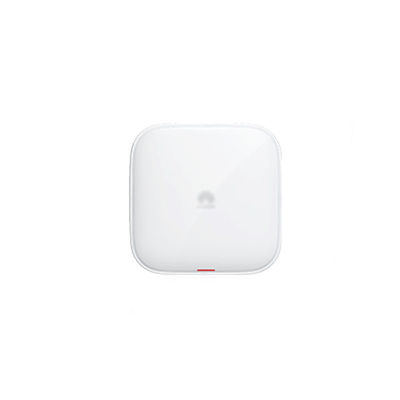

Hua wei AirEngine 6760 - X1 Dual Band Wireless Outdoor Built-in Antennas WLAN Wireless Access Point
Description
AirEngine 6760-X1 AirEngine 6760-X1E — indoor Wi-Fi 6 (802.11ax) Access Points (APs) — support ten spatial streams as the default, with support for up to 12 spatial streams possible through a Right to Use (RTU) software license. In addition, both APs support Software-Defined Radio (SDR) and can flexibly switch between three modes — dual-radio, triple-radio, and dual-radio + one scanning radio — making them ideal for high-interference or high-density access scenarios.
Features
- Dynamic Turbo
-
Smart Antennas
-
IoT Expansion
Product Spectification
| Specifications |
AirEngine 6760-X1 |
| Dimensions (Diameter x Height) |
61 x 220 x 220 mm |
| Power Input |
DC: 48 V ± 10%
PoE power supply: in compliance with IEEE 802.3bt
|
| Maximum Number of Users |
≤ 1024 (dual-radio mode)
≤ 1152 (triple-radio mode)
Note: The actual number of users varies according to the environment
|
| Port |
| 1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+ |
|
IoT |
Built-in IoT slots
|
| Operating Temperature |
–10°C to 50°C |
| MIMO: Spatial Streams |
Basic capability:
2.4 GHz: 4x4:4; 5 GHz: 6x6:6
Capability upgrade via RTU license:
2.4 GHz: 4x4:4; 5 GHz: 8x8:8
2.4 GHz: 4x4:4; 5 GHz-0: 4x4:4; 5 GHz-1: 4x4:4
|
