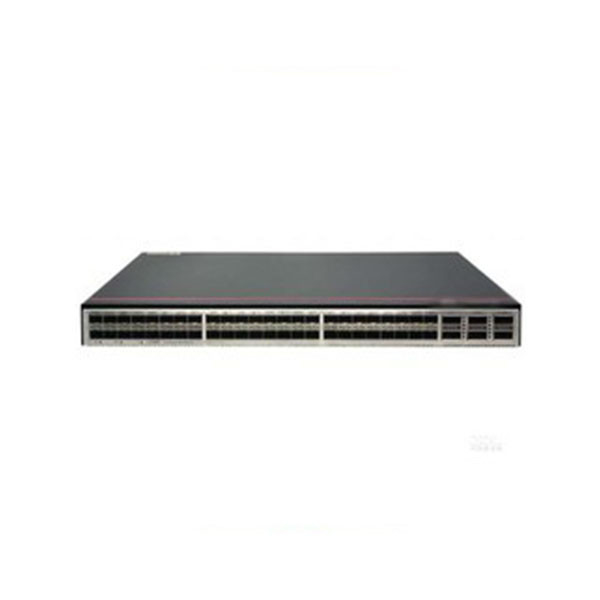

HUA WEI CloudEngine CE6820 - 48S6CQ - B 6800 48 Port Data Center 8*10G SFP+ Switch

HUA WEI CloudEngine CE6820 - 48S6CQ - B 6800 48 Port Data Center 8*10G SFP+ Switch

Products - Network Switch 48 Port
  • Product Model
    HUA WEI CloudEngine CE6820 - 48S6CQ - B 6800 48 Port Data Center 8*10G SFP+ Switch
  • Products Status
    Stock
  • Keywors
    CE6820-48S6CQ-B
  • Processor
    1.4 GHz, Four-core
  • DRAM Memory
    4 GB
  • NOR Flash
    64 MB
  • Place of Origin
    China
  • Model Number
    CloudEngine CE6820 - 48S6CQ - B
  • Minimum Order Quantity
    1
  • Packaging Details
    box
  • Delivery Time
    3-5
  • Payment Terms
    L/C, T/T, D/P, D/A, Western Union,
  • Supply Ability
    10000 set per month

HUA WEI CloudEngine CE6820 - 48S6CQ - B 6800 48 Port Data Center 8*10G SFP+ Switch

  • HUA WEI CloudEngine CE6820 - 48S6CQ - B 6800 48 Port Data Center 8*10G SFP+ Switch
  • HUA WEI CloudEngine CE6820 - 48S6CQ - B 6800 48 Port Data Center 8*10G SFP+ Switch
Get Price Contact Now

HUA WEI CloudEngine CE6820 - 48S6CQ - B 6800 48 Port Data Center 8*10G SFP+ Switch

Description



CloudEngine 6850 (CE6850 for short) series switches are next-generation 10G Ethernet switches designed for data centers and high-end campus networks, providing high-performance, high-density 10GE ports, and low latency. The CE6850 series uses an advanced hardware architecture with 40GE uplink ports and high density 10GE access ports. Using the VRP8 software platform, CE6850 series provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE6850 series can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.





Features



  • High performance
  • high density
  • low latency


Product Spectification



Product Model CE6820-48S6CQ-B
Fixed ports Forty-eight 10GE SFP+ Ethernet optical ports Six 40GE/100GE QSFP28 Ethernet optical ports

Physical specifications
 Dimensions (H x W x D): 43.6 mm x 442.0 mm x 420.0 mm
Temperature

Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
Storage temperature: -40°C to +70°C (-40°F to +158°F)


Relative humidity 5% RH to 95% RH, noncondensing
Altitude

< 5000 m (16404 ft.)


Noise (sound pressure, 27°C)

Back-to-front airflow: < 55 dBA; Front-to-back airflow: < 55 dBA
AC power input Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input

Rated voltage range: -48 V DC to -60 V DC

Maximum voltage range: -38.4 V DC to -72 V D
