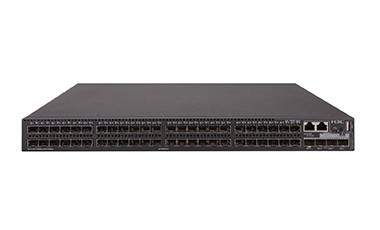

S5560X-54F-EI Enterprise-Class 48-Port Gigabit Ethernet Switch 4 * 10G SFP Up
Description
S5560X-54F-EI: 48 × SFP ports, 4 × 10G/1G BASE-X SFP+ ports, 1 × expansion slot, 2 × fan tray slots, and 2 × power module slots.
Features
Embedded Access Controller
H3C S5560X-EI implements the WLAN function by installing an AC feature pack on the main control unit, thereby implementing both the wired function and the WLAN function on a single device. Embedded AC is a low-cost WLAN solution, save overall investment, improve forwarding capacity, realized a true unified wired and wireless solution in Campus. Max256 AP supported on one single switches.
Product Spectification
| Product Model |
S5560X-54F-EI |
| Service ports |
48 × SFP ports
4 × 10G SFP+ ports
|
| MTBF(Year) |
149.97 |
| MTTR(Hour) |
1
|
| Operating temperature |
0ºC to 45ºC (32°F to 113°F)
-60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m.
|
| Storage temperature |
-40℃ to 70℃(-40℉ to 158℉)
|
|
|
