Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches

Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches

Products - Network Switch 48 Port
  • Product Model
    CloudEngine S5732 - H48S6Q
  • Dimensions (W X D X H)
    442 Mm X 420 Mm X 43.6 Mm
  • Chassis Height
    1 U
  • Chassis Weight (including Packaging)
    9.2 Kg
  • Maximum Power Consumption
    255 W
  • Storage Temperature
    -40℃ To +70℃
  • Place of Origin
    China
  • Model Number
    CloudEngine S5732 - H48S6Q
  • Minimum Order Quantity
    1
  • Packaging Details
    box
  • Delivery Time
    3-5
  • Payment Terms
    L/C, T/T, D/P, D/A, Western Union,
  • Supply Ability
    10000 set per month

Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches

  • Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches
  • Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches
  • Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches
  • Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches
  • Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches
Get Price Contact Now

Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches



Description



CloudEngine S5732-H series switches offer enhanced gigabit connectivity, simple convergence of wired and wireless networks and free mobility to create a multi-purpose network through consistent user experience and VXLAN-based virtualization.

CloudEngine S5732-H works at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. It provides all-GE optical downlink ports and fixed 40GE uplink ports and supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception. With integrated security capabilities and intelligent network O&M, CloudEngine S5732 series enables you to create simple, intelligent campus networks.



Features



1. Wired and Wireless Convergence

2. Intelligent Network O&M

3. Integrated Security Capabilities






Product Spectification



Product Model CloudEngine S5732-H48S6Q
Forwarding Performance 480 Mpps
Switching Capacity 2.4 Tbit/s
Fixed Ports

48 × GE SFP ports, 4 × 10GE SFP+ ports, 6 × 40GE QSFP+ ports
Wireless Services Management of up to 1024 APs
AP access control, AP domain management, and AP configuration template management
Radio channel management, unified static configuration, and dynamic centralized management
WLAN basic services, QoS, security, and user management
CAPWAP, tag/terminal location, and spectrum analysis
iPCA

Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device level

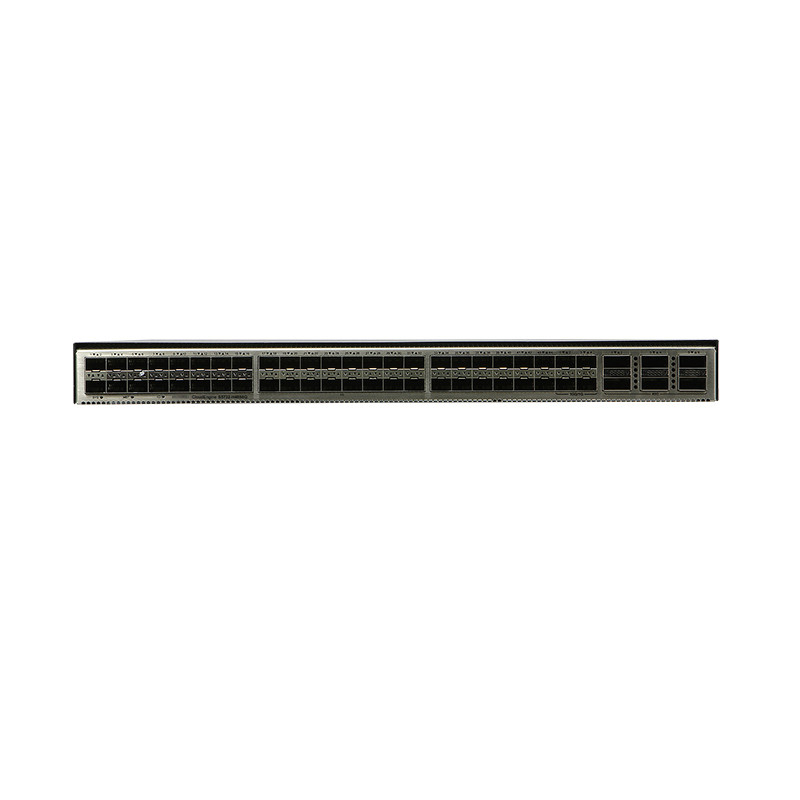

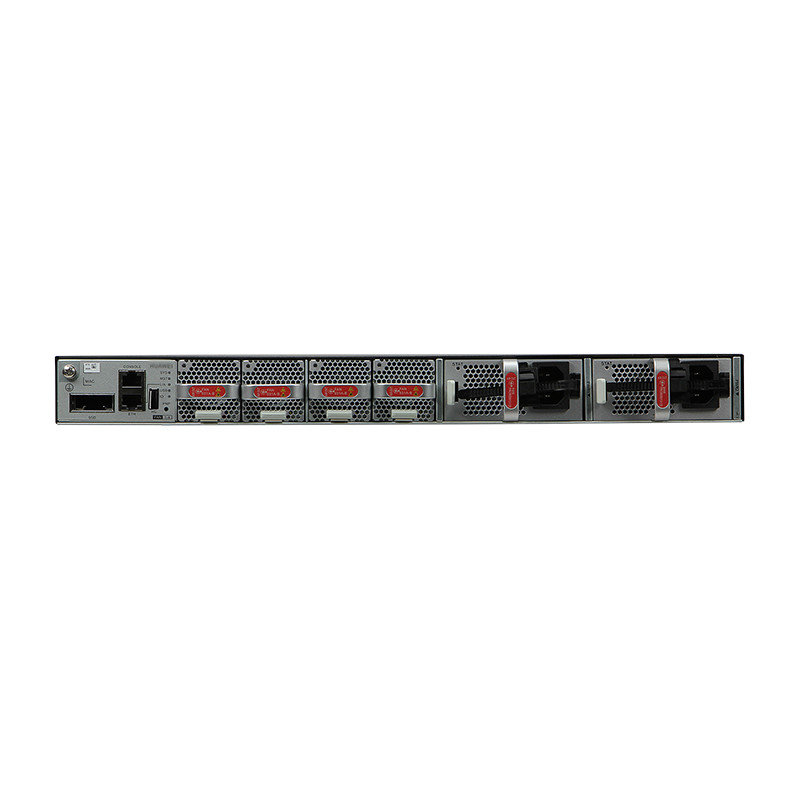

CloudEngine S5732-H48S6Q appearance and structure

1

Forty-four 1000BASE-X ports
Applicable modules:GE optical module
GE-CWDM optical module
GE-DWDM optical module
GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s)



2

Applicable modules and cables:GE optical module
GE-CWDM optical module
GE-DWDM optical module
GE copper module (100M/1000M auto-sensing)
10GE SFP+ optical module (OSXD22N00 not supported)
10GE-CWDM optical module
10GE-DWDM optical module
1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
3 m and 10 m SFP+ AOC cables



3

Six 40GE/100GE QSFP+ optical ports

4

Ground screw



5

SSD card slot

6

One console port

7

One ETH management port

8

One USB port

9

One PNP button

10

Fan module slot 1
11 Fan module slot 2 12 Fan module slot 3
13 Fan module slot 4 14 Power module slot 1
15 Power module slot 2



Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches 0









Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches 1

Hua wei Network Switch 48 Port CloudEngine S5732 - H48S6Q All-Optical Switches 2
