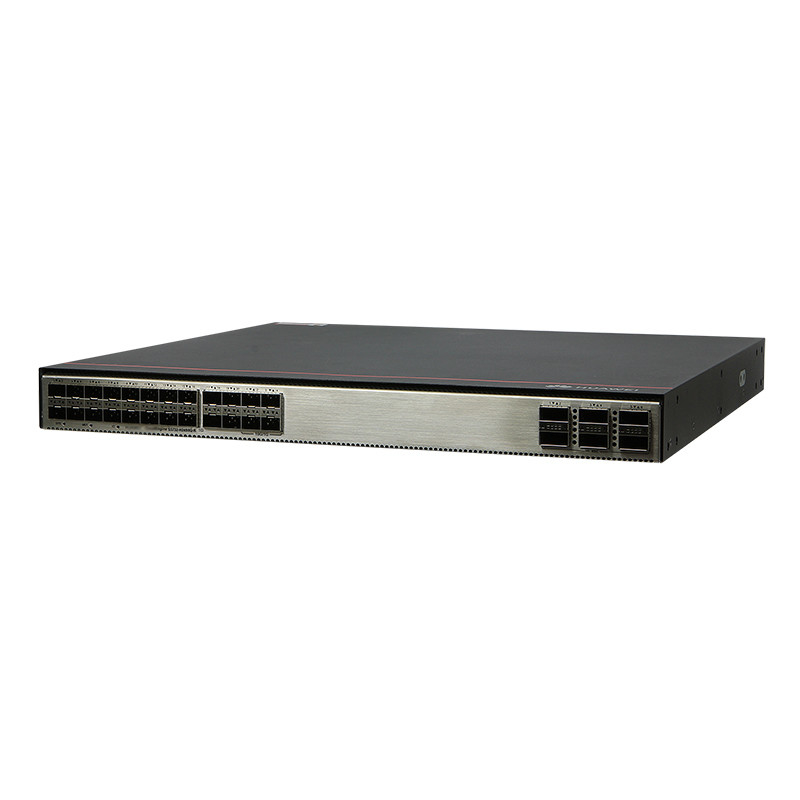

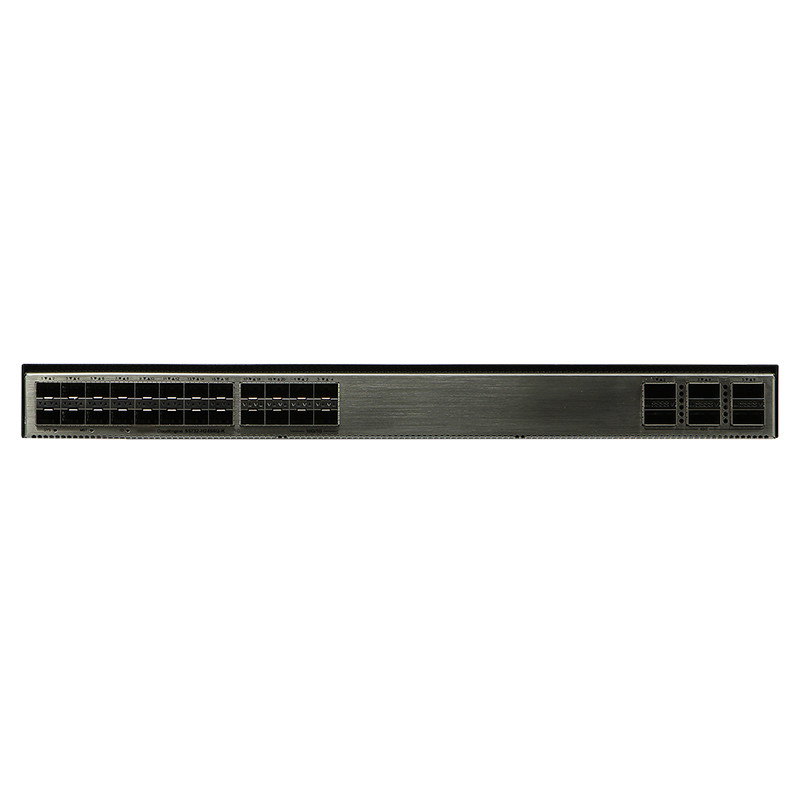

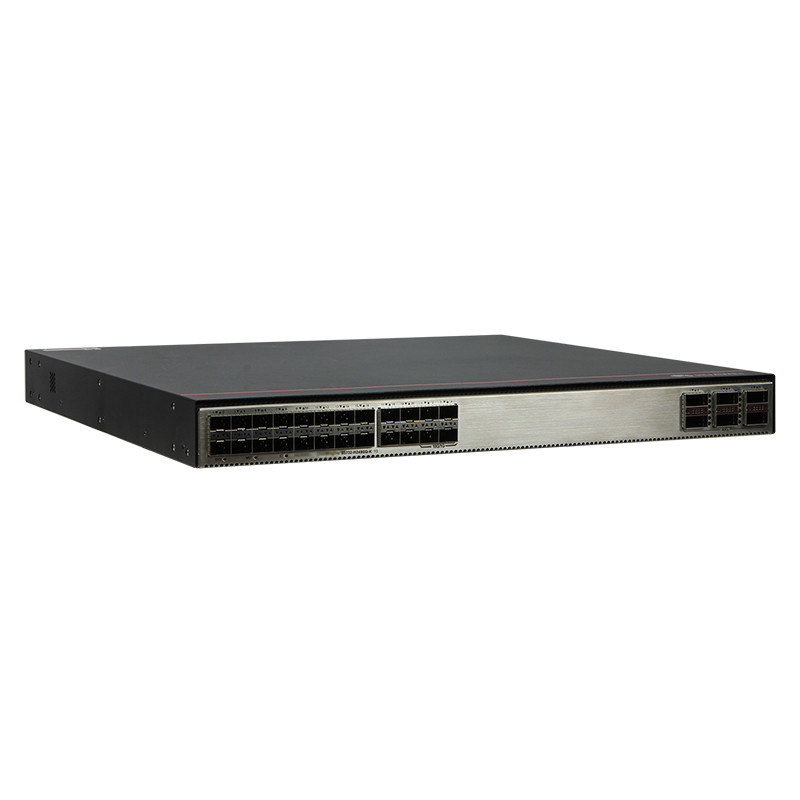

Hua wei CloudEngine S5732 - H24S6Q 24 Port Multi - GE Network Switches
Description
CloudEngine S5732-H series switches offer enhanced gigabit connectivity, simple convergence of wired and wireless networks and free mobility to create a multi-purpose network through consistent user experience and VXLAN-based virtualization.
CloudEngine S5732-H works at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. It provides all-GE optical downlink ports and fixed 40GE uplink ports and supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception. With integrated security capabilities and intelligent network O&M, CloudEngine S5732 series enables you to create simple, intelligent campus networks.
Features
1. Wired and Wireless Convergence
2. Intelligent Network O&M
3. Integrated Security Capabilities
Product Spectification
| Product Model | CloudEngine S5732-H24S6Q |
| Fixed port | 115 mm × 545 mm × 360 mm |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height | 1 U |
| Power supply type | • 600 W AC (pluggable) • 1000 W DC (pluggable) |
| Maximum voltage range | • AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) • DC input (1000 W DC): -36 V DC to -72V DC |
| Maximum power consumption | 229 W |
| Noise | • Under normal temperature (sound power): 65dB (A) • Under high temperature (sound power): 88dB (A) • Under normal temperature (sound pressure): 52dB (A) |
| 1 | Twenty 1000BASE-X ports Applicable modules:GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s) |
2 | Four 10GE SFP+ ports Applicable modules and cables:GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (100M/1000M auto-sensing) 10GE SFP+ optical module (OSXD22N00 not supported) 10GE-CWDM optical module 10GE-DWDM optical module 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables |
| 3 | Applicable modules and cables:
|

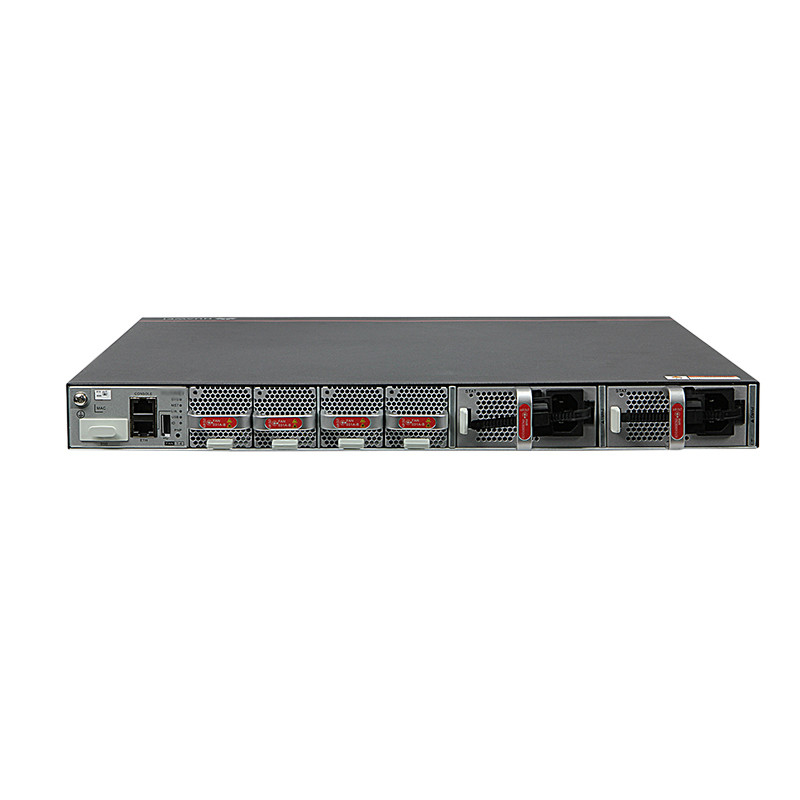

4 | Ground screw |
| 5 | SSD card slot | 6 |
One console port |
| 7 | One ETH management port | 8 | One USB port |
| 9 | One PNP button | 10 | Fan module slot 1 |
| 11 | Fan module slot 2 | 12 | Fan module slot 3 |
| 13 | Fan module slot 4 | 14 | Power module slot 1 |
| 15 | Power module slot 2 |
