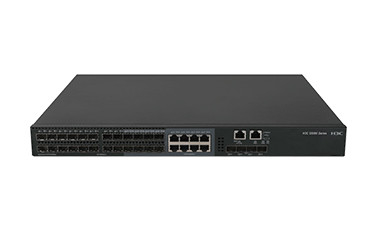

H3C S5560S-28F-EI 24 Gigabit Electrical Port Aggregation Layer 3 Core Switch
Description
S5560S-28F-EI—Provides 24 ×SFP ports (including 8 × combo interfaces) and 4 × SFP+ ports.
Features
The switch supports 1+1 power module redundancy and 1+1 fan tray redundancy. You can select AC or DC power modules for the switch as needed. The switch automatically monitors power module and fan tray status and adjusts fan speed based on the change in temperature. When a power or temperature event occurs, the switch generates alarms.
Product Spectification
| Product Model |
H3C S5560S-28F-EI |
| Port features |
802.3x flow control (full-duplex)
Storm suppression based on port bandwidth percentage
Storm suppression based on PPS
Storm suppression based on BPS
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
|
| Jumbo frame |
10,000 |
| MAC address table |
16K MAC address entries
Blackhole MAC address
MAC learning limit
|
| IP routing |
12K IPV4 routing entries
Static routing
RIPv1/v2 and RIPng
OSPFv1/v2/v3
BGP and BGP4+ for IPv6
IS-IS
VRRP/VRRPv3
|
|
|
| VLAN |
- Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
IP subnet based VLAN
QinQ and flexible QinQ
VLAN mapping
Voice VLAN
MVRP
|
|
|
Q: How could I get samples?
A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight. We send the
samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from
our company or send us the samples charge together with the courier cost.
Q: How much the Courier freight will be for the samples?
A: Courier freight depends on weight and carton size, destinations and other relating factors.
Q: How can I get your price list?
A: Please leave your contact way such as Email/Whatsapp/Skype/Trademanager to us. We will contact you and pass our quotation
sheet to you as soon as possible.
Q:When can I get the price?
A: We usually quote within 8 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we will regard your inquiry priority.
