Hua wei CloudEngine S6730 - H24X4Y4C 24 Port Next-Generation Enterprise-Class Core Aggregation Switch
Description
CloudEngine S6730-H series full-featured 10 GE switches are new-generation fixed switches , to provide 10 GE downlink ports as well as 100 GE uplink ports. CloudEngine S6730-H series switches provide native AC capabilities and can manage 1K APs. They provide a free mobility function to ensure consistent user experience and are Virtual Extensible LAN(VXLAN )capable to implement network virtualization. CloudEngine S6730-H series switches also provide built-in security probes and support abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception. The CloudEngine S6730-H series is ideal for enterprise campuses, carriers, higher education institutions, and governments.
Features
- Provide the integrated WLAN AC function that can manage 1K APs, reducing the costs of purchasing additional WLAN AC hardware. With this switch series, customers can stay ahead in the high-speed wireless era.
- Support SVF and functions as a parent switch. With this virtualization technology, a physical network with the “Small-sized core and aggregation switches + Access switches + APs” structure can be virtualized into a “super switch”, greatly simplifying network management.
- Provide excellent QoS capabilities and supports queue scheduling and congestion control algorithms. Additionally, it adopts innovative priority queuing and multi-level scheduling mechanisms to implement finegrained scheduling of data flows, meeting service quality requirements of different user terminals and services.
- Use the Packet Conservation Algorithm for Internet (iPCA) technology that alters the traditional method of using simulated traffic for fault location. iPCA technology can monitor network quality for any service flow anywhere, anytime, without extra costs. It can detect temporary service interruptions in a very short time and can identify faulty ports accurately. This cutting-edge fault detection technology turns “extensive management” to “granular management.”
- Support Two-Way Active Measurement Protocol (TWAMP) to accurately check any IP link and obtain the entire network’s IP performance. This protocol eliminates the need of using a dedicated probe or a proprietary protocol.
Product Spectification
| Product Model |
CloudEngine S6730 - H24X4Y4C |
| Dimensions with packaging (H x W x D) |
115 mm × 545 mm × 360 mm |
| Chassis height |
1 U |
| Weight without packaging |
3.4 kg |
| Typical power consumption |
186 W |
| Redundant power supply |
1+1 AC and DC power can be used together |
| Rated input voltage |
AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC |
| Input voltage range |
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC |
| PoE |
Not supported |

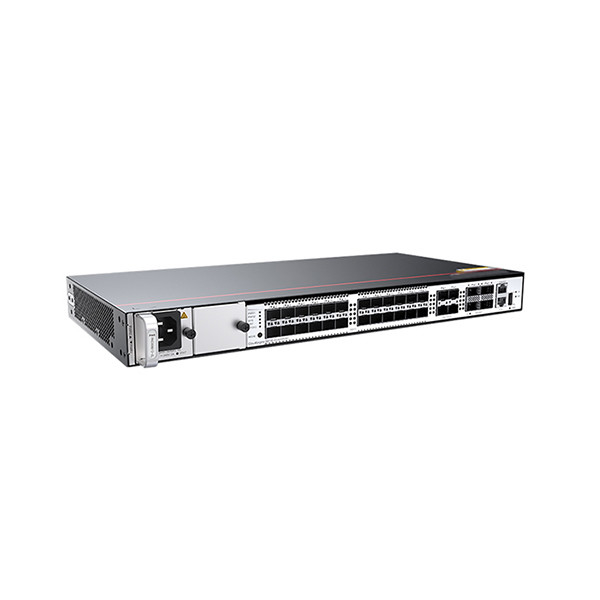

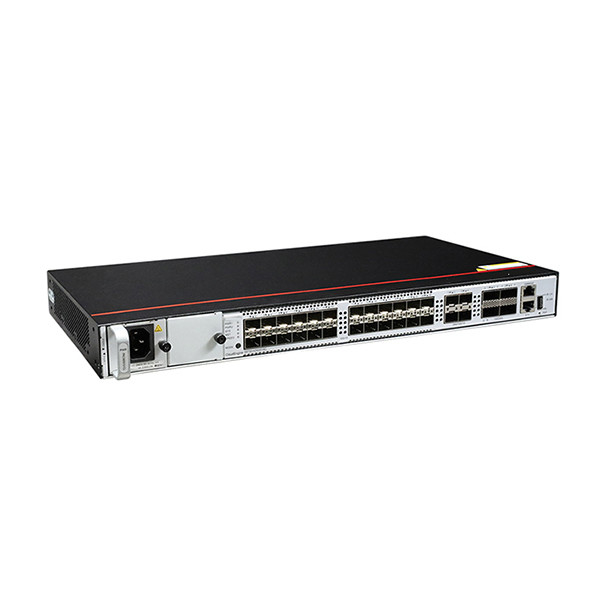

CloudEngine S6730 - H24X4Y4C appearance and structure
| 1 |
Power module slot 1 |
5 |
Four 40GE/100GE QSFP28 optical ports
40GE QSFP+: QSFP-40G-eSR4 QSFP-40G-iSR4 QSFP-40G-eSDLC-PAM
QSFP-40G-LR4 QSFP-40G-SDLC-PAM
100GE QSFP28: QSFP-100G-CWDM4 QSFP-100G-ER4-Lite QSFP28-100G-LR4 QSFP28-100G-PSM4 |
| 2 |
Power module slot 2 |
6 |
One console port |
| 3 |
Twenty-four 10GE SFP+ ports
OMXD30000 OSX010000
OSX040N01 SFP-10G-ZR SFP-10G-USR |
7 |
One ETH management port
|
| 4 |
Four 1GE/10GE/25GE SFP28 optical ports |
8 |
One USB port |
