Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches

Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches

Products - Network Switch 48 Port
  • Product Model
    CloudEngine S5731S - S48T4X
  • Dimensions (W X D X H)
    442 Mm X 420 Mm X 43.6 Mm
  • Chassis Height
    1 U
  • Fixed Port
    48 X 10/100/1000Base - T Ports, 4 X 10GE SFP+ Ports
  • Maximum Power Consumption
    124 W
  • Warranty
    1 Year
  • Place of Origin
    China
  • Model Number
    CloudEngine S5731S - S48T4X
  • Minimum Order Quantity
    1
  • Packaging Details
    box
  • Delivery Time
    3-5
  • Payment Terms
    L/C, T/T, D/P, D/A, Western Union,
  • Supply Ability
    10000 set per month

Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches

  • Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches
  • Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches
  • Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches
  • Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches
  • Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches
Get Price Contact Now

Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches



Description



S5731S - S48T4X switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, which is one of the S5731S-S series switches.

CloudEngine S5731-S series switches are next-generation standard gigabit switches that provide GE electrical downlink ports and 10GE uplink ports. The CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.



Features



1.Automated Network Services

2.Simplified Network O&M

3.Integrated Security




Product Spectification



Product Model CloudEngine S5731 - S48T4X
Forwarding Performance 125 mpps
Switching Capacity2 176/672 Gbit/s
Fixed Ports 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+
PoE+ Not supported
Operating altitude 0-5000 m (0-16404 ft.)

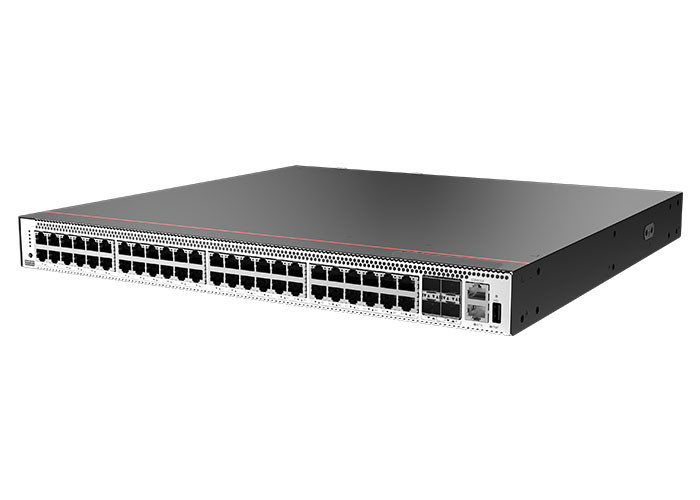

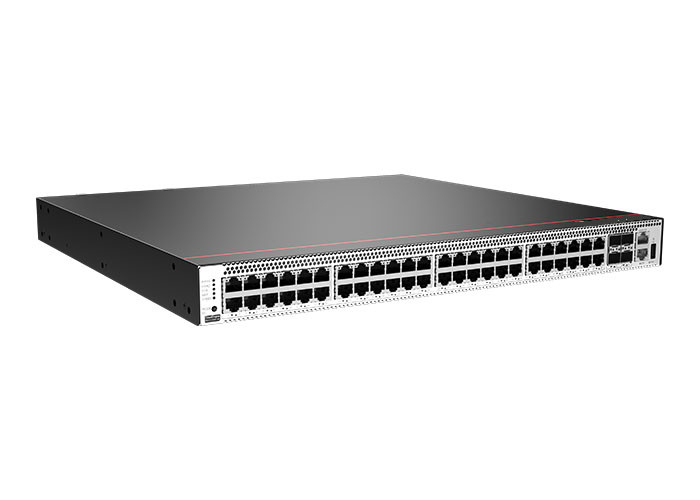

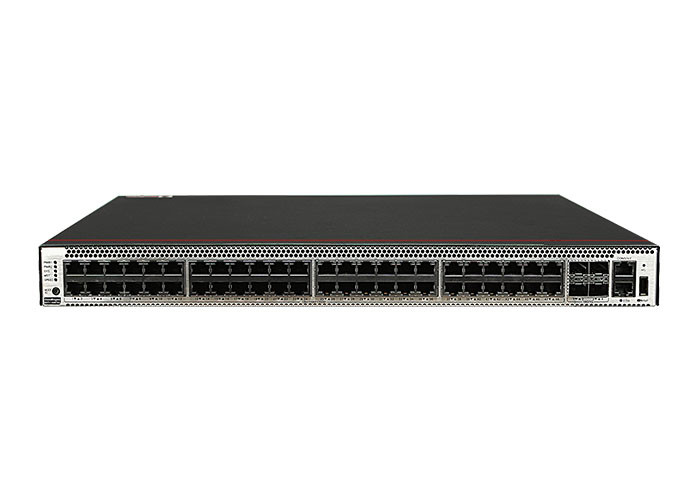

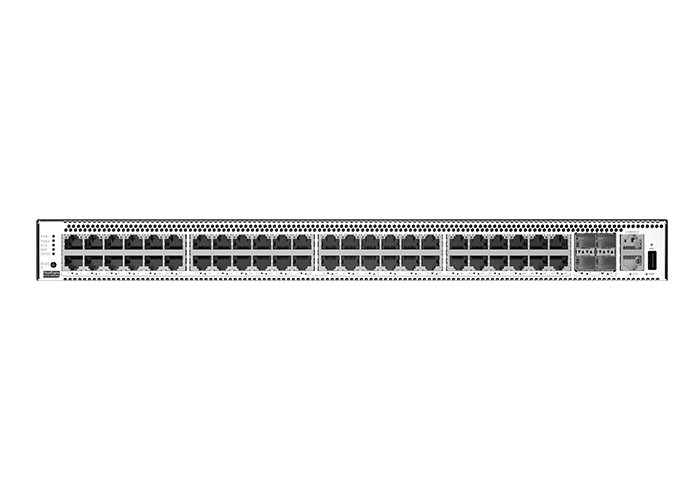

CloudEngine S5731S-S48T4X appearance and structure

1

Forty-eight 10/100/1000BASE-T ports
SFP-1000Base-T

2

Four 10GE SFP+ ports
OMXD30000 OSX010000

3

One console port

4

One ETH management port

5

One USB port

6

One PNP button

7

Ground screw

8

Fan module slot 1

9

Fan module slot 2

10

Power module slot 1
11 Power module slot 2



Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches 0







Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches 1

Hua wei Network Switch 48 Port S5731S - S48T4X Next - Generation Gigabit Access Switches 2



Q: How could I get samples?
A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight. We send the
samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from
our company or send us the samples charge together with the courier cost.
Q: How much the Courier freight will be for the samples?
A: Courier freight depends on weight and carton size, destinations and other relating factors.
Q: How can I get your price list?
A: Please leave your contact way such as Email/Whatsapp/Skype/Trademanager to us. We will contact you and pass our quotation
sheet to you as soon as possible.
Q:When can I get the price?
A: We usually quote within 8 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we will regard your inquiry priority.
