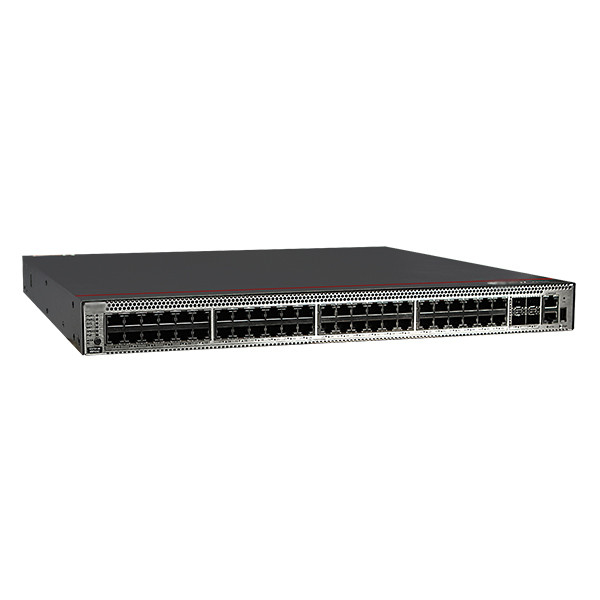

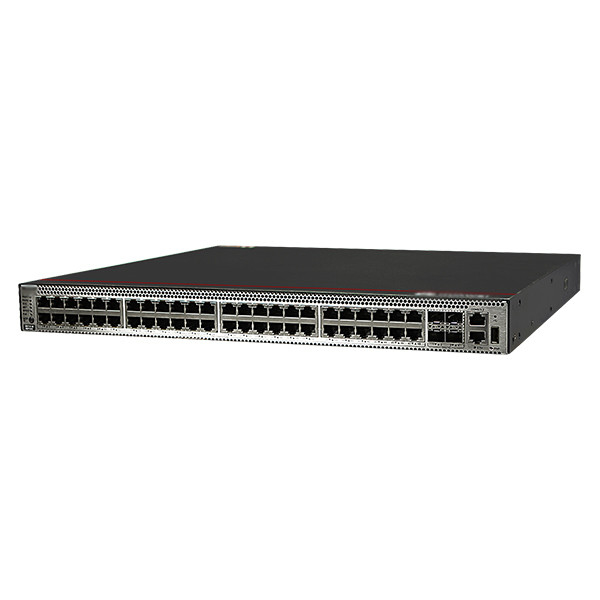

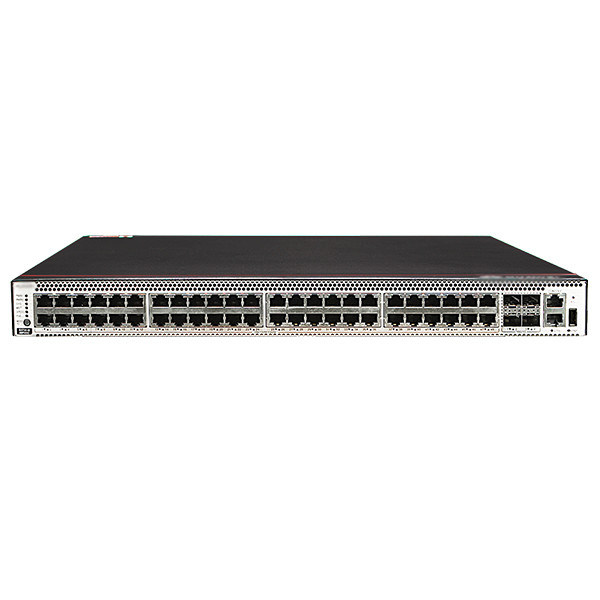

Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch

Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch

Products - Network Switch 48 Port
  • Product Model
    CloudEngine S5731-H48P4XC
  • Fixed Port
    48 X 10/100/1000Base-T (PoE+) Ports, 4 X 10GE SFP+ Ports
  • Chassis Height
    1 U
  • Storage Temperature
    -40°C To +70°C
  • Relative Humidity
    5% To 95% (non-condensing)
  • Power Supply Type
    1000 W PoE AC (pluggable)
  • Warranty
    1 Year
  • Forwarding Performance
    125 Mpps
  • Place of Origin
    China
  • Model Number
    CloudEngine S5731-H48P4XC
  • Minimum Order Quantity
    1
  • Packaging Details
    box
  • Delivery Time
    3-5
  • Payment Terms
    L/C, T/T, D/P, D/A, Western Union,
  • Supply Ability
    10000 set per month

Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch

  • Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch
  • Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch
  • Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch
  • Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch
  • Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch
Get Price Contact Now

Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch



Description



CloudEngine S5731-H series switches are brand-new enhanced gigabit access switches that provide all-GE electrical downlink ports, fixed 10GE uplink ports, and one extended slot.

CloudEngine S5731-H delivers gigabit connectivity at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S5731-H enables you to converge your wired and wireless networks for simplified operations. It also offers free mobility to deliver consistent user experience and VXLAN-based virtualization to create a multi-purpose network. With built-in security probes, CloudEngine S5731-H supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception.



Features



1.Ultra Large Port Buffer, Ensuring Non-Blocking Data Forwarding
2. Intelligent O&M, Achieving Fault Locating in Minutes
3. Industry-Unique Security Deception Technology, Identifying Attacks in Advance



Product Spectification



Product Model CloudEngine S5731-H48P4XC
Fixed port 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports
Dimensions (H x W x D) 43.6 mm x 442 mm x 420mm
Extended slot One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards
Chassis height 1U
Power supply type 1000 W PoE AC (pluggable)
Rated voltage range AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range

• AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz

• High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)

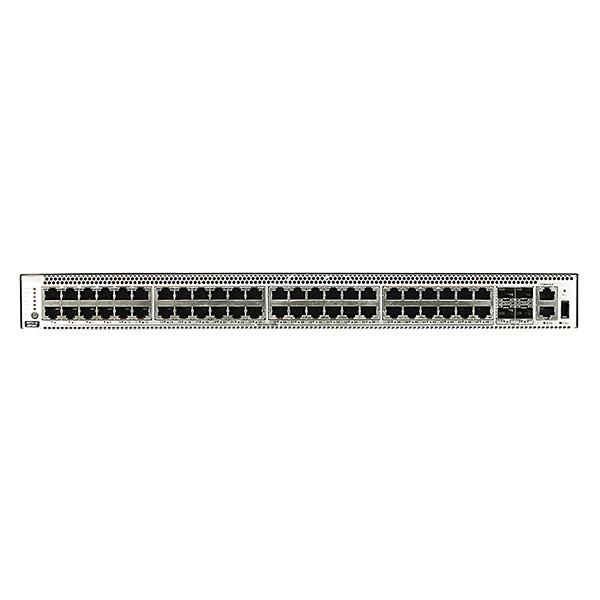

S5731-H48P4XC-AC appearance and structure
1 Forty-eight PoE+ 10/100/1000BASE-T portsSFP-1000Base-T 7 Ground screw
2 Four 10GE SFP+ ports
OMXD30000 OSX010000
OSX040N01 SFP-10G-ZR
SFP-10G-USR		 8 Rear card slot
3 One console port 9

Fan module slot 1
4 One ETH management port 10 Fan module slot 2
5 One USB port 11 Power module slot 1
6 One PNP button 12 Power module slot 2



Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch 0





Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch 1

Hua wei Network Switch 48 Port S5731- H48P4XC Poe enterprise-class switch 2
