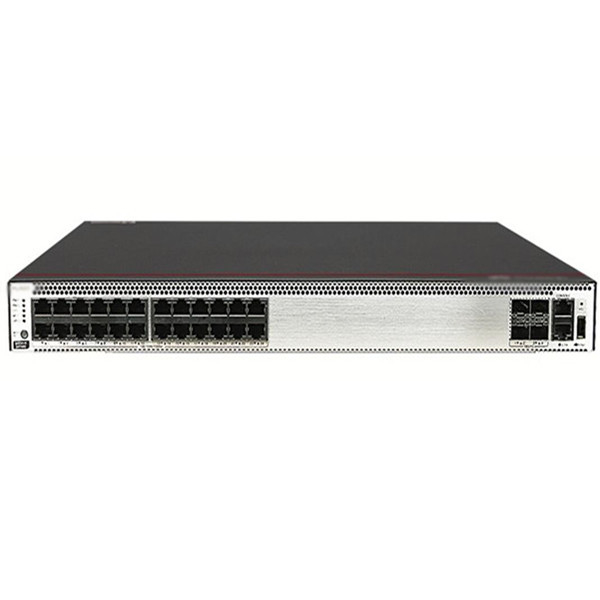

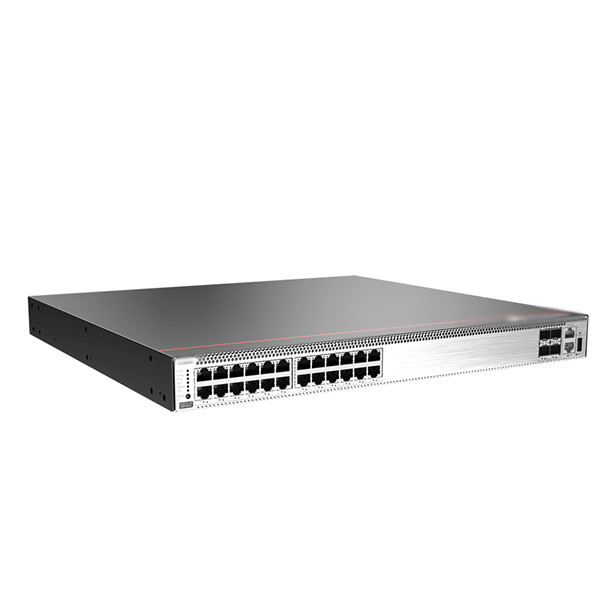

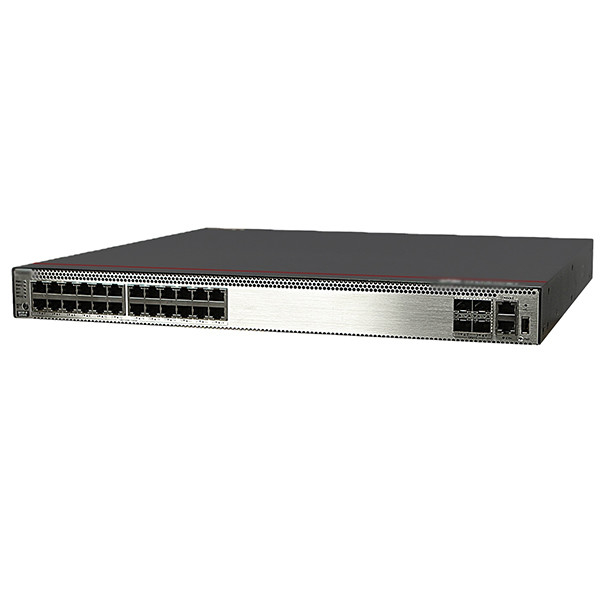

Hua wei Network Switch 24 Port S5731 - H24P4XC Ethernet POE Gigabit switch with 10GE uplink
Description
CloudEngine S5731-H series switches are brand-new enhanced gigabit access switches that provide all-GE electrical downlink ports, fixed 10GE uplink ports, and one extended slot.
CloudEngine S5731-H delivers gigabit connectivity at the aggregation or access layer in large and midsize campuses, at the core layer in branches and small campuses, and at the access layer in data centers. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S5731-H enables you to converge your wired and wireless networks for simplified operations. It also offers free mobility to deliver consistent user experience and VXLAN-based virtualization to create a multi-purpose network. With built-in security probes, CloudEngine S5731-H supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception.
Features
Product Spectification
| Product Model | CloudEngine S5731 - H24P4XC |
| Forwarding Performance | 125 Mpps |
| Switching Capacity | 672 Gbit/s |
| Fixed Ports | 24 × 10/100/1000Base-T Ethernet ports, 4 × 10 Gig SFP+ |
| PoE+ | Supported |
| Extended Slots | 1 |
| Wireless Services | Management of up to 1024 APs AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management |
| iPCA | Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels |
| Super Virtual Fabric (SVF) | Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management Supports a two-layer client architecture Supports third-party devices between SVF parent and clients |
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |

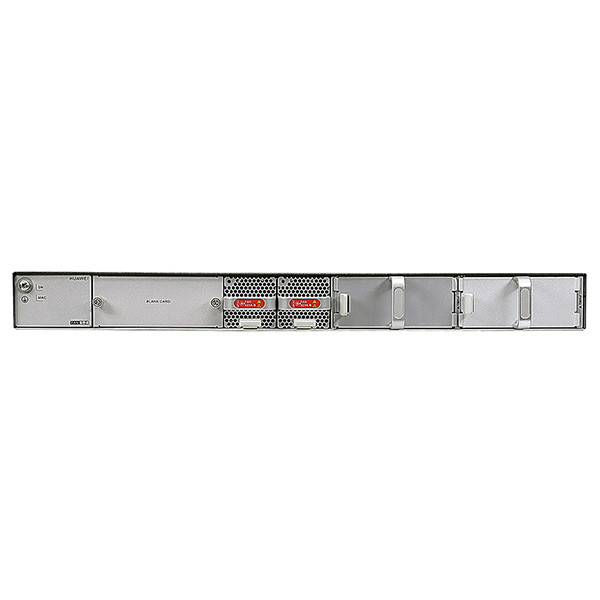

| 1 | Twenty-four PoE+ 10/100/1000BASE-T ports SFP-1000Base-T | 7 | Ground screw |
| 2 | Four 10GE SFP+ ports OMXD30000 OSX010000 OSX040N01 SFP-10G-ZR SFP-10G-USR |
8 | Rear card slot |
| 3 | One console port | 9 |
Fan module slot 1 |
| 4 | One ETH management port | 10 | Fan module slot 2 |
| 5 | One USB port | 11 | Power module slot 1 |
| 6 | One PNP button | 12 | Power module slot 2 |
