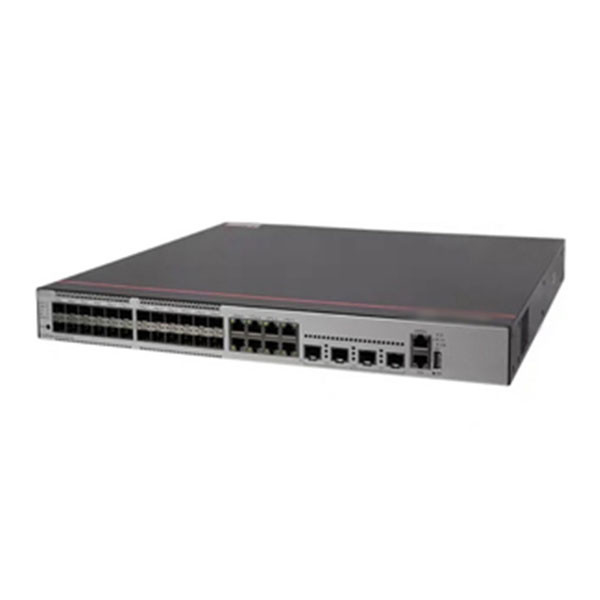

Hua wei 32 Port Enhanced Layer 3 Network Switch S5731 - S32ST4X
Description
The CloudEngine S5731-S series offers a range of standard gigabit access switches, with all-GE electrical ports and fixed 10 GE uplink ports.
Built on unified Versatile Routing Platform (VRP), CloudEngine S5731-S switches provide enhanced Layer 3 features,simplified Operations & Maintenance (O&M), Intelligent Stack (iStack) technology — allowing multiple stacking-capable switches to function as
a single logical switch — flexible Ethernet networking, and mature Internet Protocol version 6 (IPv6) features.
The series is widely used in a range of scenarios, including enterprise campus access and aggregation, as well as data center access.
Features
Product Spectification
| Spectification | S5731-S32ST4X-A(8*10/100/1000BASE-T ports, 24*GE SFP ports, 4*10GE SFP+ ports, AC power, front access) |
| Rated input voltage | AC input: 100 V AC to 240 V AC, 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DCannot be used together |
| PoE | Not supported |
| RTC | Supported |
| Redundant power supply |
1+1 |
| Dimensions without packaging (H x W x D) | Basic dimensions: 43.6 mm x 442.0 mm x 420.0 mm |
| Maximum dimensions: 43.6 mm x 442.0 mm x 448.0 mm | |
| Dimensions with packaging (H x W x D) | 185 mm x 650 mm x 550 mm |

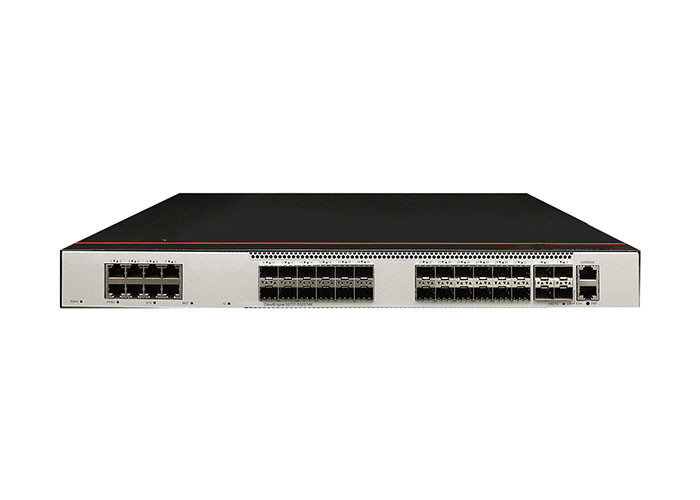

| 1 | Eight 10/100/1000BASE-T ports | 2 | Twenty-four 100/1000BASE-X ports |
| 3 | Four 10GE SFP+ ports | 4 | One console port |
| 5 | One ETH management port | 6 |
One PNP button |
| 7 | AC socket | 8 | Ground screw |
