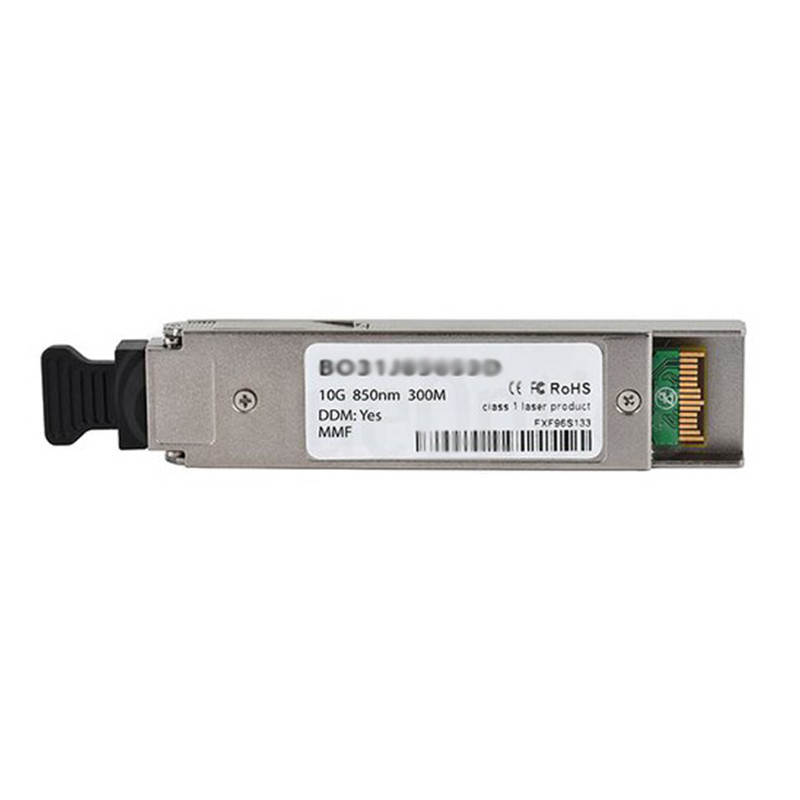

HUA WEI 10GBASE-SR XFP 850nm 300m DOM LC MMF Module XFP-SX-MM850
Description
The transceiver is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 300m on 50μm MMF (2000MHz.km). The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10GbE systems.
Features
* Supports 9.95Gbps to 10.5Gbps bit rates
* Maximum link length of 300m (50um,MMF,2000MHz.Km)
* 850nm VCSEL laser and PIN receiver
* Low power consumption <1.5W
* +5V, +3.3V power supply
* XFP MSA package with duplex LC connector
* XFI electrical interface
* No reference clock required
* Compatible with RoHS
* Excellent EMI performance
* Built-in digital diagnostic functions
* Temperature range: 0~70℃ * High reliability
| Power Supply | XFP-SX-MM850 |
| Description | Optical Transceiver,XFP,10G,Multi-mode Module(850nm,0.3km,LC) |
| Attributes | 36 100Gb/s non-blockingHardware |
| Category | Optical Transceiver |
| Pack Dimension(D*W*H mm) | 130*95*45 |
| Typic Power(W) |
|
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
Our products are sold all over the world, you can rest assured.
